RVR and runway centerline lights



Runway centerline lights space interval on the runway



The runway centerline lights are typically spaced at intervals of approximately 15 meters (or roughly 50 feet),

while the runway edge lights are usually spaced at intervals of around 60 meters (approximately 200 feet). You can see this layout displayed on the simulated screen below.



We can count the centerline lights and estimate the RVR (Runway Visual Range).

on the runway





High- Intensity Approach Lighting System

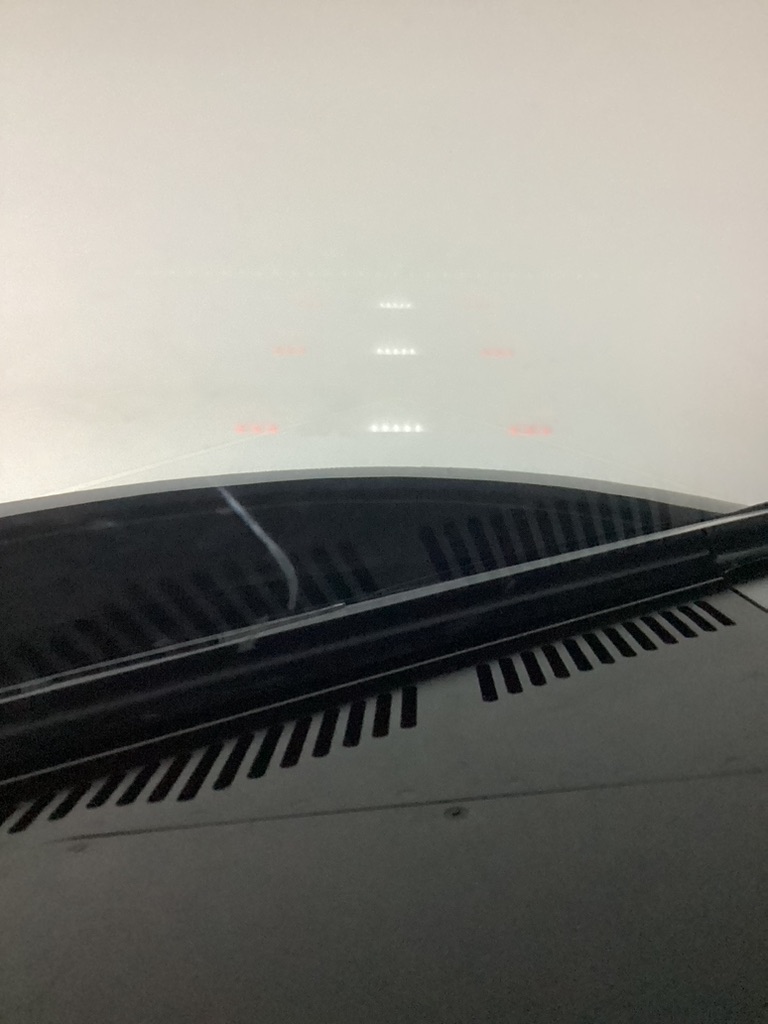

Here is the High-Intensity Approach Lighting System with Sequenced Flashing Lights, as depicted in the pictures on the simulated screen.
